Cohesity® and Nutanix® Integration for NKP Data Protection

Overview

As organizations adopt Kubernetes to run stateful, production-grade applications, traditional VM backup tools fall dangerously short. They cannot capture the full application context of a containerized workload i.e. Kubernetes environment configuration, persistent storage, and application state are left exposed — invisible to VM backup tools and unprotected against the ransomware, corruption, or cluster failure that could strike at any time. Meanwhile, managing separate tools for VMs, files, databases, and containers fragments visibility, inflates operational overhead, and creates the kind of blind spots attackers exploit.

Cohesity and Nutanix deliver a tightly integrated, enterprise-grade data protection solution for the Nutanix Kubernetes Platform (NKP). By combining Cohesity Data Cloud with NKP’s native Kubernetes capabilities, organizations can protect containerized workloads with policy-driven, scalable, and cyber‑resilient backup and recovery without the operational complexity.

The Solution

Cohesity integrates natively with Nutanix NKP using open, Kubernetes-native standards. Velero protects Kubernetes object metadata. Cohesity Datamover uses CSI snapshots to protect persistent volume data. Together, they deliver complete application-context protection from a single platform, the same Cohesity Data Cloud that protects your AHV VMs, Nutanix Files, and NDB databases.

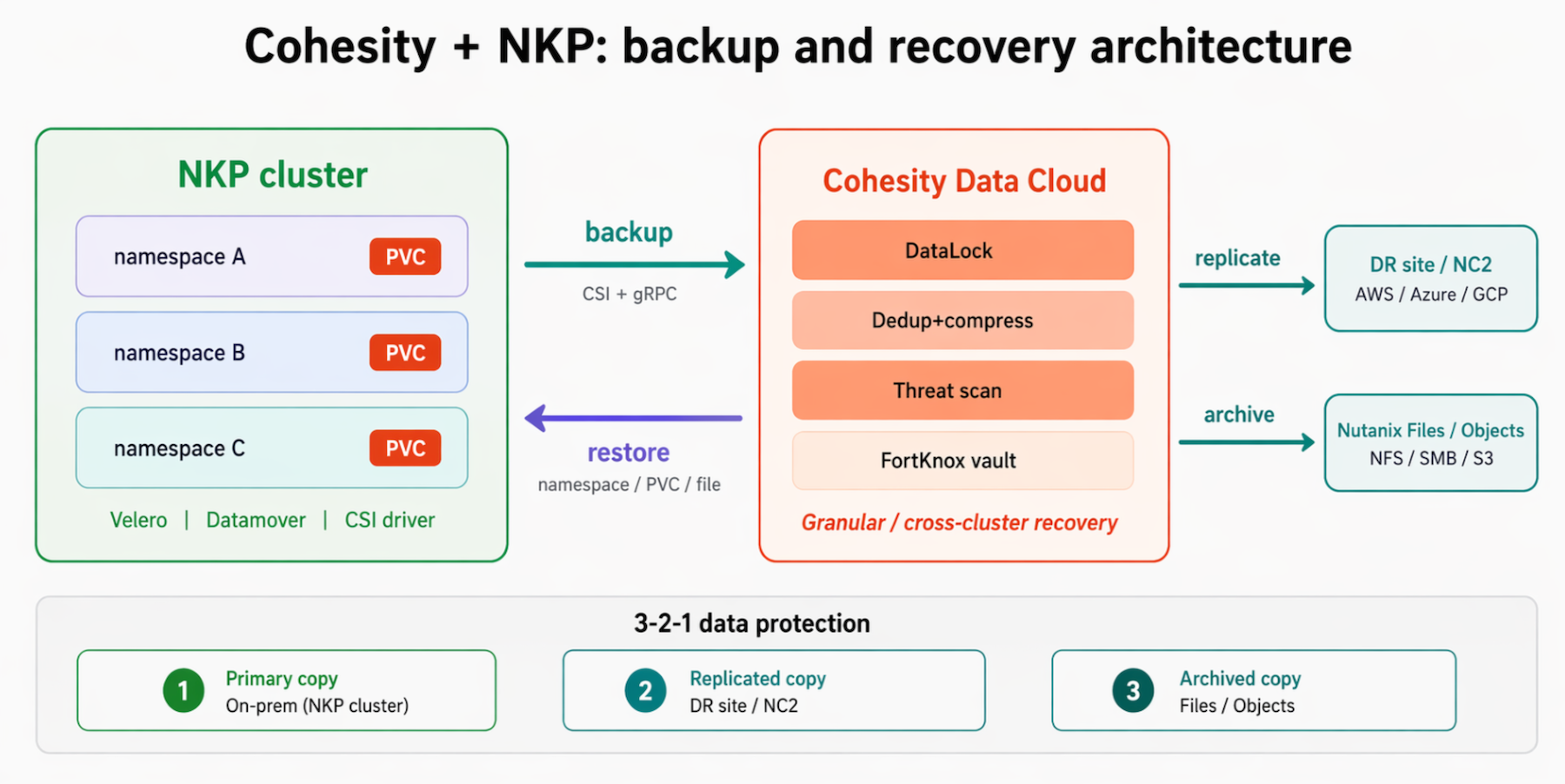

Figure 1

Key Benefits

  • Kubernetes-native architecture using open standards (Velero + CSI)—no proprietary agents inside application pods.
  • One platform protects all Nutanix workloads: VMs, Files, NDB, NKP, and NC2.
  • Immutable backups with DataLock and optional FortKnox air-gapped vault deliver ransomware-resilient protection.
  • Unified Helios UI and global actionable search across all workloads and locations.

Key Capabilities

Forever-incremental CSI backups

CSI-based snapshots capture only changed data after the first full backup, minimizing storage footprint and backup windows.

Granular protection at every level

Recover an entire namespace, individual PVCs, or specific files and folders from within a PVC—to the same cluster or a different one.

Label-based auto-protect

Protection policies follow Kubernetes labels automatically. Tag a namespace as tier=production and it is protected—no manual intervention required.

Cross-cluster recovery with storage class remapping

Restore applications to a different cluster and remap PVCs to a new storage class on the target—enabling true application portability.

Application-consistent backups

Pre- and post-exec scripts quiesce stateful and transactional workloads before snapshot, ensuring clean, usable recovery points.

Include/exclude resources during backup and recovery

Granular PVC inclusion and exclusion at protection group or namespace level with custom Kubernetes resource filtering. Can include/exclude K8s resources at the granular level like secrets, Config Maps, CRDs etc .

How It Works

Use Cases

Why Cohesity

  1. Register: Provide the NKP cluster API endpoint and Bearer token. Cohesity deploys Velero and Datamover pods into the cluster automatically.
  2. Protect: Create a protection policy for namespaces. Label-based rules auto-enroll matching namespaces as they are created.
  3. Back up: Velero captures Kubernetes metadata. CSI snapshots capture PVCs. Datamover streams data to Cohesity via gRPC.
  4. Recover: Choose namespace, PVC, or file-level recovery. Restore to the original cluster or cross-cluster with storage class remapping.
  • Enterprise Kubernetes backup and DR
  • Ransomware-resilient container protection
  • Application-consistent stateful workload backup
  • Cross-cluster app migration and portability
  • Secure hybrid and NC2 cloud K8s operations
  • Unified protection across the full Nutanix portfolio

Efficient Data Protection
Forever-incremental, CSI-based backups reduce storage and operational overhead

One Platform.
Unified Cohesity UI with centralized visibility and control

Cyber Resilience
Immutable backups, data isolation, and clean recovery paths

Co-engineered.
Cohesity is Nutanix ready certified. Built alongside Nutanix to accelerate IT modernization without compromising security or recoverability.
