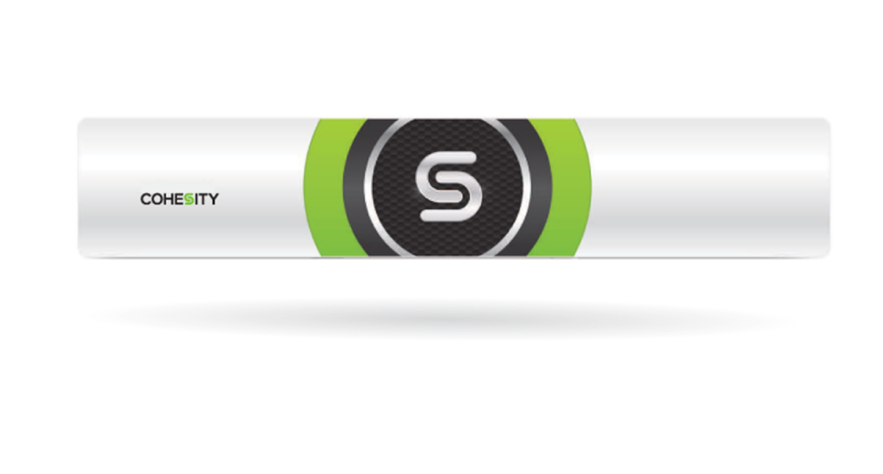

Cohesity C5200 Series

The next-gen refresh of the C5000 platform delivers higher performance, advanced security, and future-ready infrastructure.

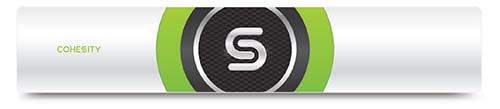

C5000 Hero Image
Overview

Building blocks for simplified, secure data management on-premises

Each Cohesity C5200 hyperconverged node delivers next-gen performance with 5th Gen Intel Xeon processors, DDR5 memory, and self-encrypting storage options. Designed for scale-out simplicity, the C5200 provides compute, flash, and secure HDD capacity in a single platform. Start with as few as three nodes and expand linearly as your data and business grow—no disruption required.

Hyperconverged simplicity

Say goodbye to silos with one easy platform for protection, recovery, and analytics—plus seamless, non-disruptive cluster expansion so you can scale smarter as your data grows.

Built-in performance and security

Get faster performance for backup and data workloads with the latest processors and drives. The hybrid architecture combines fast SSDs and optional self-encrypting drives to move data faster, back up quicker, and keep it secure to meet compliance needs.

Future-ready by design

The C5200 is built to grow with you. Whether you're expanding within existing clusters or modernizing your environment. With fast networking and built-in security, you’re ready for whatever comes next—no forklift upgrades needed.

Benefits

Scalable performance for growing needs

Pay as you grow

The C5200’s modular, scale-out architecture lets you expand seamlessly, adding capacity or performance when needed—without reconfiguration or downtime.

Bring compute to your data

Run data protection, test/dev, analytics, and security workflows directly on the platform. Minimize data movement and latency while maximizing efficiency.

Resilient by design

Built with always-on availability in mind, the C5200 supports rolling software upgrades, advanced fault tolerance, and seamless operations—even during maintenance or unexpected outages.

Technical specifications for Cohesity C5200 Series

*All storage capacities listed are raw.
Model C5204 C5208S C5212S C5218

Per node

Per block (4 nodes)

Per node

Per block (4 nodes)

Per node

Per block (4 nodes)

Per node

Per block (4 nodes)

Hard Disk Capacity*

12 TB

48 TB

24 TB

96 TB

36 TB

144 TB

54 TB

216 TB

PCI-e-Based Flash Storage*

1.6 TB

6.4 TB

1.6 TB

6.4 TB

1.6 TB

6.4 TB

3.2 TB

12.8 TB

Memory

128 GB

512 GB

128 GB

512 GB

128 GB

512 GB

128 GB

512 GB

CPU

 1 x Intel
Xeon
(2.0 GHz, 16 Core)

4 x Intel Xeon
(2.0 GHz, 16
Core)

1 X Intel Xeon
(2.0 GHz, 16
Core)

4 X Intel Xeon
(2.0 GHz, 16
Core)

1 X Intel Xeon (2.0 GHz, 16
Core)

4 X Intel Xeon
(2.0 GHz, 16
Core)

1 X Intel
Xeon
(2.0 GHz, 16 Core)

4 X Intel Xeon
(2.0 GHz, 16
Core)

On-Board Network Connectivity

10/25/40/100GbE
16/32G FC

Dimensions

2U EIA Rack Units (17.24 x 3.5 x 31.88 in) / (43.8 x 8.75 x 81 cm)

Weight

110 lbs / 50 Kg

Operating Environment

Cohesity Data Cloud

Storage protocol support

NFSv3, SMB 2.1, SMB 3.0, S3 REST API

Data protection integrations

Refer to Cohesity DataProtect data sheet for the latest

Data resiliency

Erasure Coding and RF/2

Security

Trusted Platform Module

Fault Tolerance

Disk, Node, Chassis and Rack

Cloud archive

Google Nearline, Microsoft Azure, Amazon S3 & Glacier, any S3 and NFS compatible storage

Encryption

AES256

Power supply

2x redundant (1+1) 2000 W PSUs, Titanium Efficiency

Voltage

100 – 240 VAC / 50-60 Hz
100 – 127 V / 12 – 9.5 A†
200 – 220 V / 10 – 9.5 A
220 – 230 V / 10 – 9.8 A
230 – 240 V / 10 – 9.8 A
Note: Can only operate two nodes per block at 100-127V.

Power consumption

Average 895 W (3054 BTU/hr)
Peak 1690 W (5767 BTU/hr)

Operating temperature

5°C to 35°C (41°F to 95°F )

Non-operating temperature

-40°C to 60°C (-40°F to 140°F)

Emissions and immunity

FCC Part 15, ICES-003, CE, VCCI, RCM

Safety

UL/cUL, CB

Technical specifications for Cohesity C5000 Series

*All storage capacities listed are raw.
Model C5016 C5026 C5036 C5066

Per node

Per block (4 nodes)

Per node

Per block (4 nodes)

Per node

Per block (4 nodes)

Per node

Per block (4 nodes)

Hard Disk Capacity*

12 TB

48 TB

24 TB

96 TB

36 TB

144 TB

54 TB

216 TB

PCI-e-Based Flash Storage*

1.6 TB

6.4 TB

1.6 TB

6.4 TB

1.6 TB

6.4 TB

3.2 TB

12.8 TB

Memory

64 GB

256 GB

128 GB

512 GB

128 GB

512 GB

128 GB

512 GB

CPU

 1 x Intel
Xeon
(2.1 GHz, 12 Core)

4 x Intel Xeon
(2.1 GHz, 12
Core)

1 X Intel Xeon
(2.4 GHz, 16
Core)

4 X Intel Xeon
(2.4 GHz, 16
Core)

1 X Intel Xeon (2.4 GHz, 16
Core)

4 X Intel Xeon
(2.4 GHz, 16
Core)

1 X Intel
Xeon
(2.4 GHz, 16 Core)

4 X Intel Xeon
(2.4 GHz, 16
Core)

Network connectivity options

10/25/40/100GbE
16/32G FC

Dimensions

2U EIA Rack Units (17.24 x 3.5 x 31.88 in) / (43.8 x 8.75 x 81 cm)

Weight

110 lbs / 50 Kg

Operating Environment

Cohesity Data Cloud

Storage protocol support

NFSv3, SMB 2.1, SMB 3.0, S3 REST API

Data protection integrations

Refer to Cohesity DataProtect data sheet for the latest

Data resiliency

Erasure Coding and RF/2

Security

Trusted Platform Module

Fault Tolerance

Disk, Node, Chassis and Rack

Cloud archive

Google Nearline, Microsoft Azure, Amazon S3 & Glacier, any S3 and NFS compatible storage

Encryption

AES256

Power supply

2x redundant (1+1) 2000 W PSUs, Titanium Efficiency

Voltage

100 – 240 VAC / 50-60 Hz
100 – 127 V / 12 – 9.5 A†
200 – 220 V / 10 – 9.5 A
220 – 230 V / 10 – 9.8 A
230 – 240 V / 10 – 9.8 A
Note: Can only operate two nodes per block at 100-127V.

Power consumption

Average 895 W (3054 BTU/hr)
Peak 1690 W (5767 BTU/hr)

Operating temperature

5°C to 35°C (41°F to 95°F )

Non-operating temperature

-40°C to 60°C (-40°F to 140°F)

Emissions and immunity

FCC Part 15, ICES-003, CE, VCCI, RCM

Safety

UL/cUL, CB

Commonly asked hyperconverged node questions

Resources

opens in a new tab
Data Sheet
Data Sheet

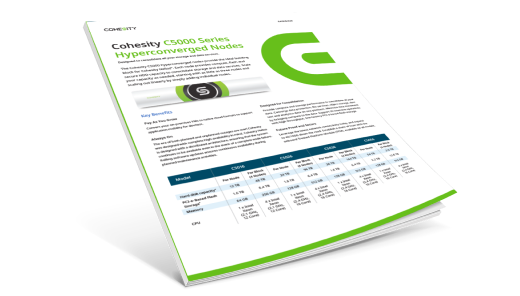

C5000 Data Sheet
