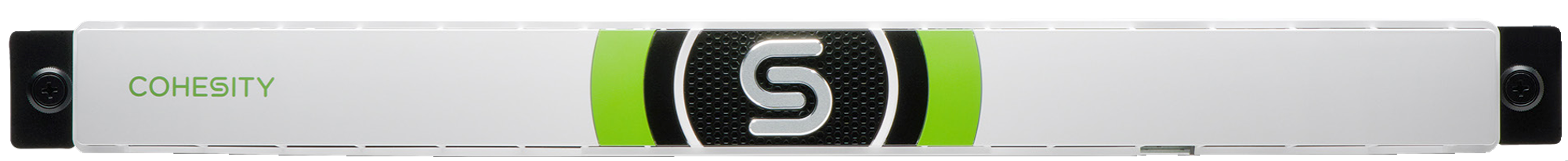

Cohesity C6000 Series High-density Converged Nodes

Replication target and file archive

Cohesity C6000 Series is a dense hybrid, converged data management appliance that supports up to 192TB capacity per node. It is ideal for data protection, backup target, and file and objects use cases. The C6000 augments the current C5000 and CX8000 Series Platforms with extended capacity and optimization for file and object deployments at scale. Cohesity Data Cloud runs on all C6000 Series models to deliver unlimited scalability, a single UI, leading deduplication, software-based encryption, enterprise search, and powerful cybersecurity.

C6000

Pay As You Grow

Add additional C6000 storage appliances seamlessly. No downtime or forklift upgrades.

Always On

The era of both planned and unplanned outages is over! Helios is a high-availability fully distributed architecture for the enterprise. The system continues to be available even in the event of a complete node failure. Rolling software updates ensure continuous availability during planned maintenance activities.

Designed for Consolidation

Provides compute and storage capacity to consolidate. Converge data protection, file services, object storage, dev/test and analytics data on a single platform. Minimize data movement and bring compute to the data. Hybrid design supports IO intensive operation with high throughput and low-latency PCI-e-based flash storage.

Specifications

Specification C6025 C6035 C6045 C6055
Hard Disk Capacity 96 TB 144 TB 168 TB 192 TB
PCI-e-based Flash Storage 6.4 TB 6.4 TB 6.4 TB 6.4 TB
Memory 128 GB 128 GB 128 GB 128 GB
CPU Two x86, 12 cores / 2.4 GHz Two x86, 12 cores / 2.4 GHz Two x86, 12 cores / 2.4 GHz Two x86, 12 cores / 2.4 GHz
On-board network connectivity 10/25/40/40GbE, 16G FC 10/25/40/40GbE, 16G FC 10/25/40/40GbE, 16G FC 10/25/40/40GbE, 16G FC
Dimensions WxHxD (in): 17.6 × 1.7 × 35.8
WxHxD (mm): 448 × 44 × 910
Weight 74 lbs / 34 kg
Operating environment Cohesity Data Cloud
Storage protocol support NFSv3, SMB 2.1, SMB 3.0, S3 REST API
Data protection integrations Refer to Cohesity DataProtect datasheet for the latest
Data resiliency Erasure Coding and RF/2
Cloud archive Google Nearline, Microsoft Azure, Amazon S3 & Glacier, any S3- and NFS-compatible storage
Encryption AES-256
Power supply 2× Redundant (1+1) 700W PSUs, Platinum Efficiency
Voltage 100–240 VAC / 50–60Hz
100–120 V / 8.0 A
200–240 V / 4.0 A
Power consumption Average: 360W (1228 BTU/hr)
Peak: 650W (2218 BTU/hr)
Operating temperature 5°C to 35°C (41°F to 95°F)
Non-operating temperature -40°C to 70°C (-40°F to 158°F)
Emissions and immunity FCC Part 15, ICES-003, CE, VCCI, RCM
Safety UL/cUL, CB

1000015-013
