NetBackup Flex 5260 Appliance

Cyber-resilient data protection for department-level workloads.

The NetBackup Flex 5260 appliance is a turnkey cyber-resilient data protection solution that reduces data center costs with improved management efficiency and bullet proof cyber resiliency. As a complete data protection solution with more than 400 TB of storage, it can be quickly deployed to protect critical workloads across the enterprise.

Solution Highlights

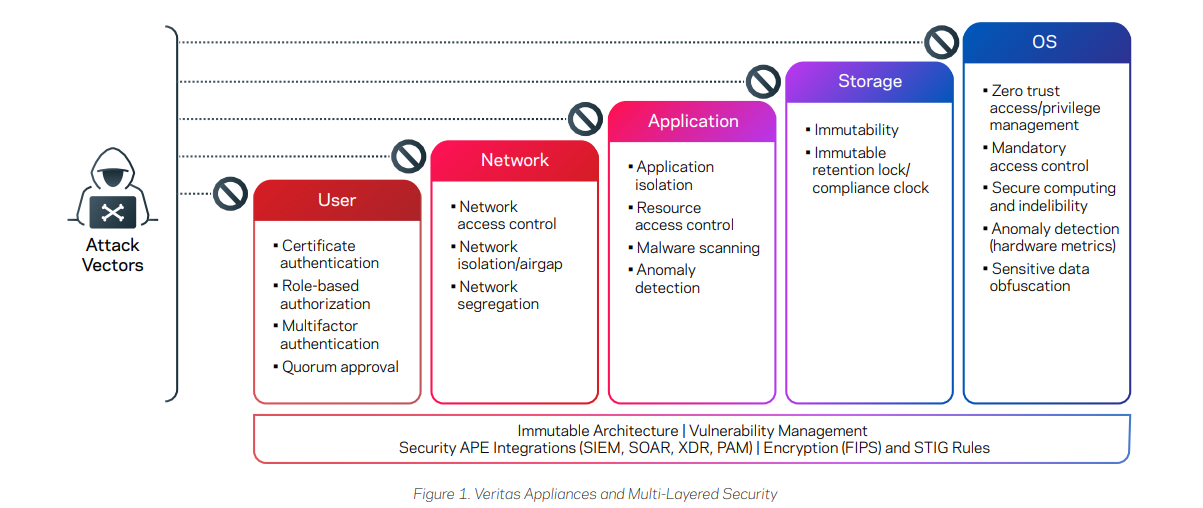

Cyber resiliency against all attack vectors

Optimized for departmental and data center workloads

Starting at 10 TB and expandable up to 442 TB usable capacity, the NetBackup Flex 5260 appliance provides the granularity to support remote locations, departments, and enterprise data centers

Proactive monitoring with NetInsights Console

Monitors key hardware components, notifies the administrator of fault events, and makes recommendations for infrastructure optimization

Performance

The NetBackup Flex 5260 delivers up to 30.74 TB/hour throughput based on server-side deduplication, with a 98 percent deduplication rate.

Technical Specification	NetBackup Flex 5260	Expansion Shelf
Usable storage capacity (TB/TiB)	10/9.1, 40/36.4	72/65.5 per shelf
Expansion shelves	N/A	Up to 6 shelves
Minimum system usable capacity (TB/TiB)	10/9.1
Maximum system usable capacity (TB/TiB)	442/402
10Gb Ethernet (10GBASE-T)	4	N/A
25‒10 Gb Ethernet ports	Up to 6	N/A
32 Gb Fibre Channel ports	N/A	N/A
Dimensions H x W x D cm (inches)	8.9 x 43.9 x 71.2 (3.5x17.28x28.03)	8.89 x 48.26 x 60.20 (3.5 x 19 x 23.7)
Maximum weight, with disk drives	25.46 kg (56.13 lbs.)	28kg (62 lbs.
Typical power consumption (watts)	400	256
Maximum power consumption (watts)	1100	480
Operating temperature (oF/oC)	50‒95/10‒35	50‒95/10‒35
AC voltage range (volts)	90-140 180-264	100‒127 200‒240
AC frequency range (Hz)	50 to 60	50 to 60

V1918
